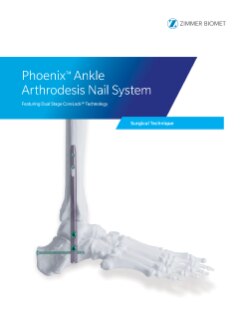

Phoenix™ Ankle Arthrodesis Nail System

The Phoenix™ Ankle Arthrodesis Nail is composed of titanium alloy and features proprietary CoreLock™ Technology. This  distinct, dual-stage locking mechanism is pre-assembled and embedded in each nail, providing up to 7mm of internal tibiotalar compression, followed by independent locking of the calcaneal screws. The nail offers a static screw site proximally and a 10mm dynamic compression slot, both of which accommodate 5.0 mm double lead cortical screws.

The system features a strong, lightweight radiolucent targeting arm that permits radiographic visualization in multiple planes, and can provide 30mm of axial compression across both the ankle and subtalar fusion sites. When additional fixation and/or control of rotation is desired, the targeting arm can accurately target an oblique screw on either side of the nail.

Pre-assembled Dual-stage Locking Mechanism

  • Pre-assembled, Imbedded Setscrews for Secure Mechanical Locking of Multiple Screws
  • Allows up to 7mm of Internal Tibiotalar Compression in Select Nails
  • Strong, Lightweight Radiolucent Targeting Arm


Consider these important design features:

  • Allows secure mechanical locking of multiple screws to the nail
  • Screws can be removed without disengaging the setscrew
  • Universal nail can treat a wide variety of patient anatomies
  • Available in three diameters and a variety of lengths from 150mm - 300mm
  • Serrated surfaces interdigitate with the screw threads for a secure, mechanical lock
  • Easy to use color-coded instrumentation
